NVX VADM4v2 4-Channel Class D Amplifier 1000W Peak 500W RMS 2/4-ohm Stable High/Low Pass X-Over

28.21
56.91
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

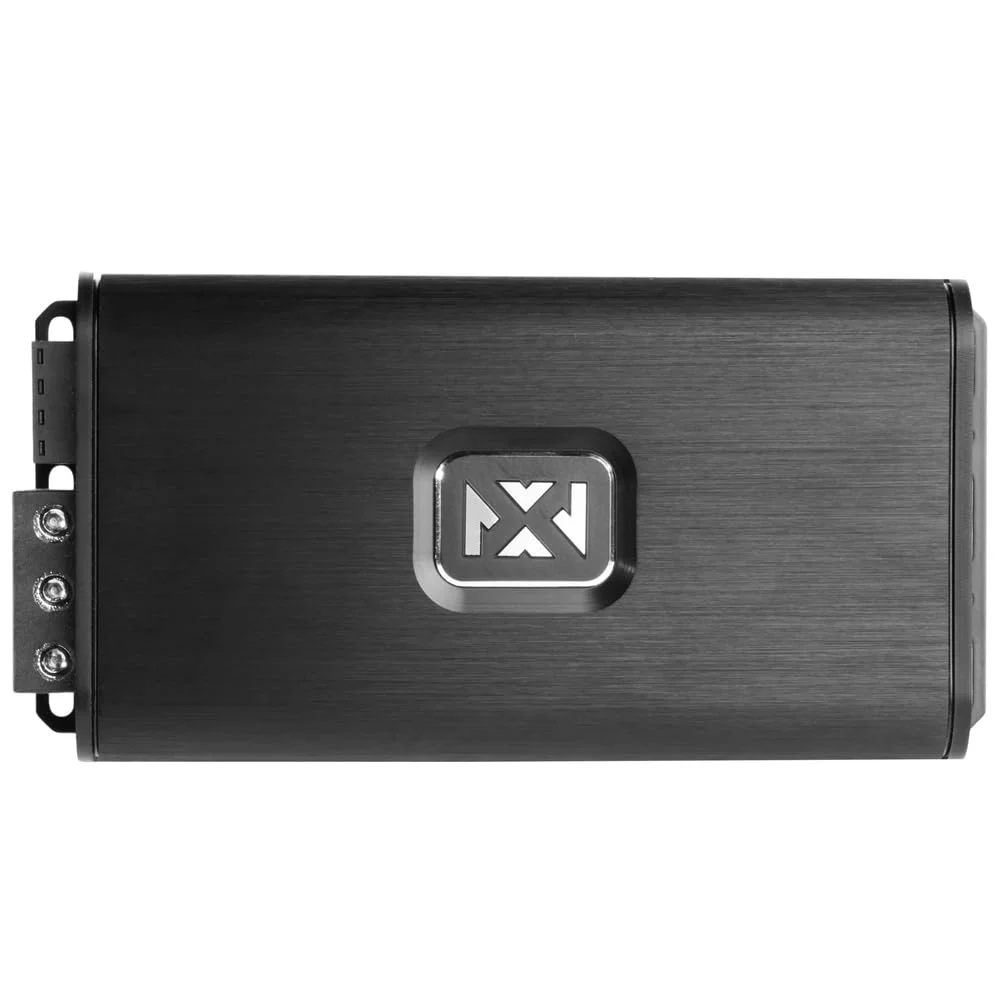

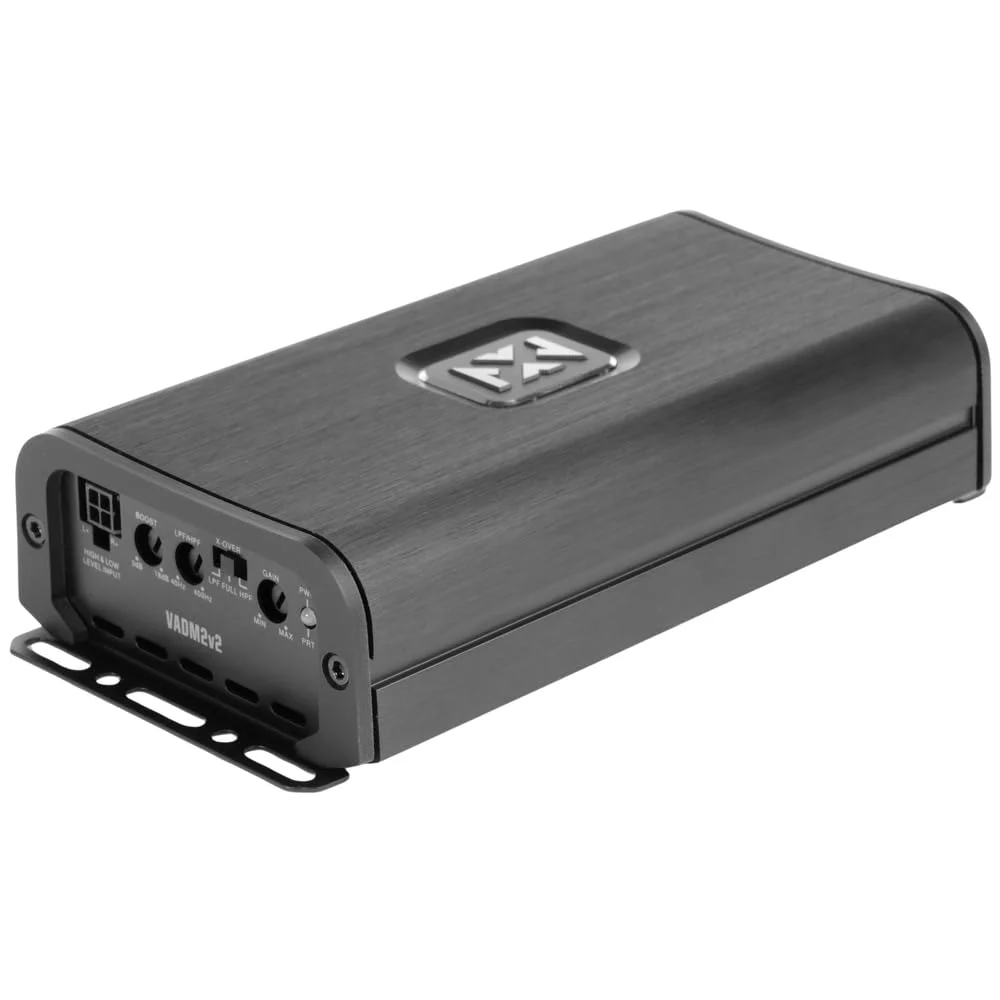

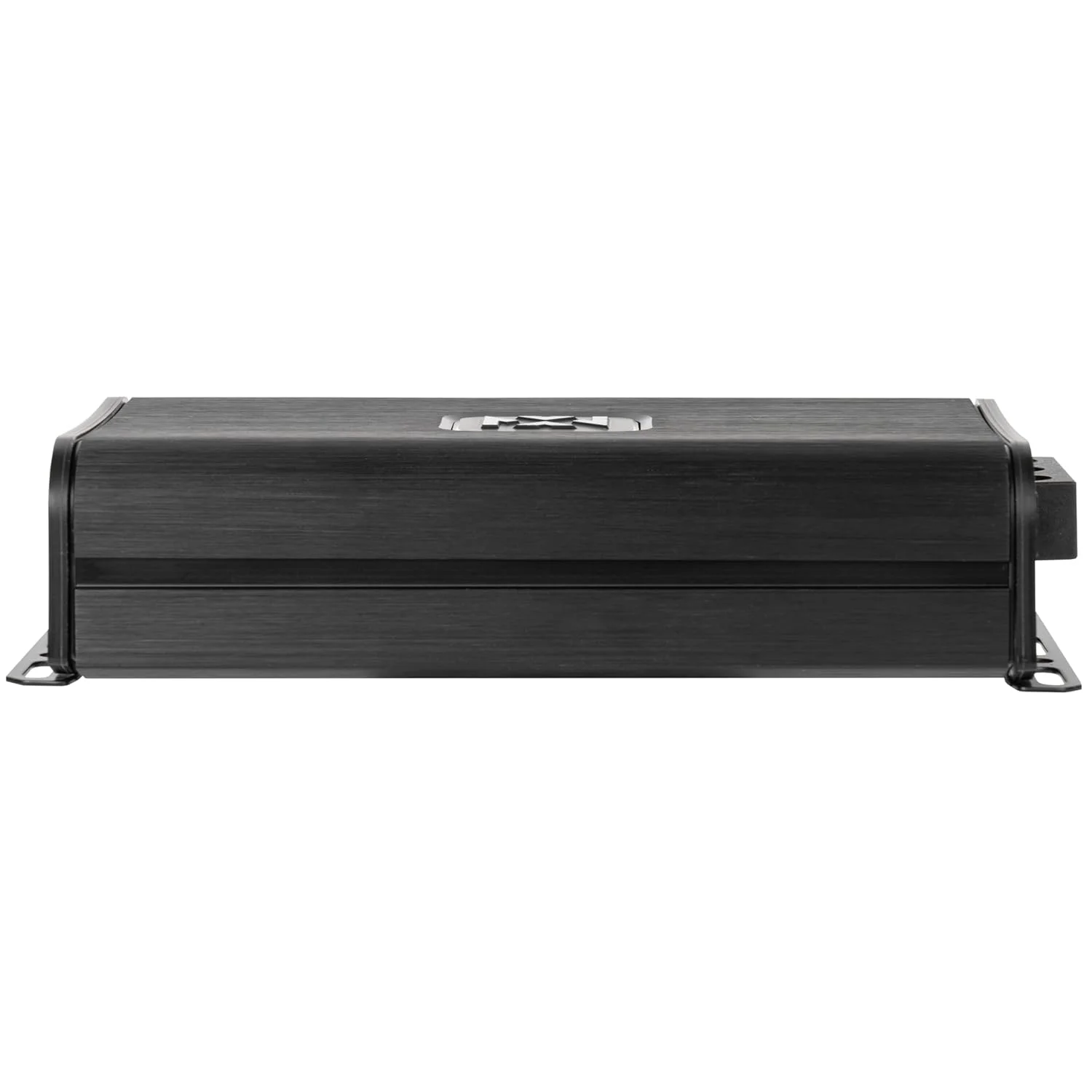

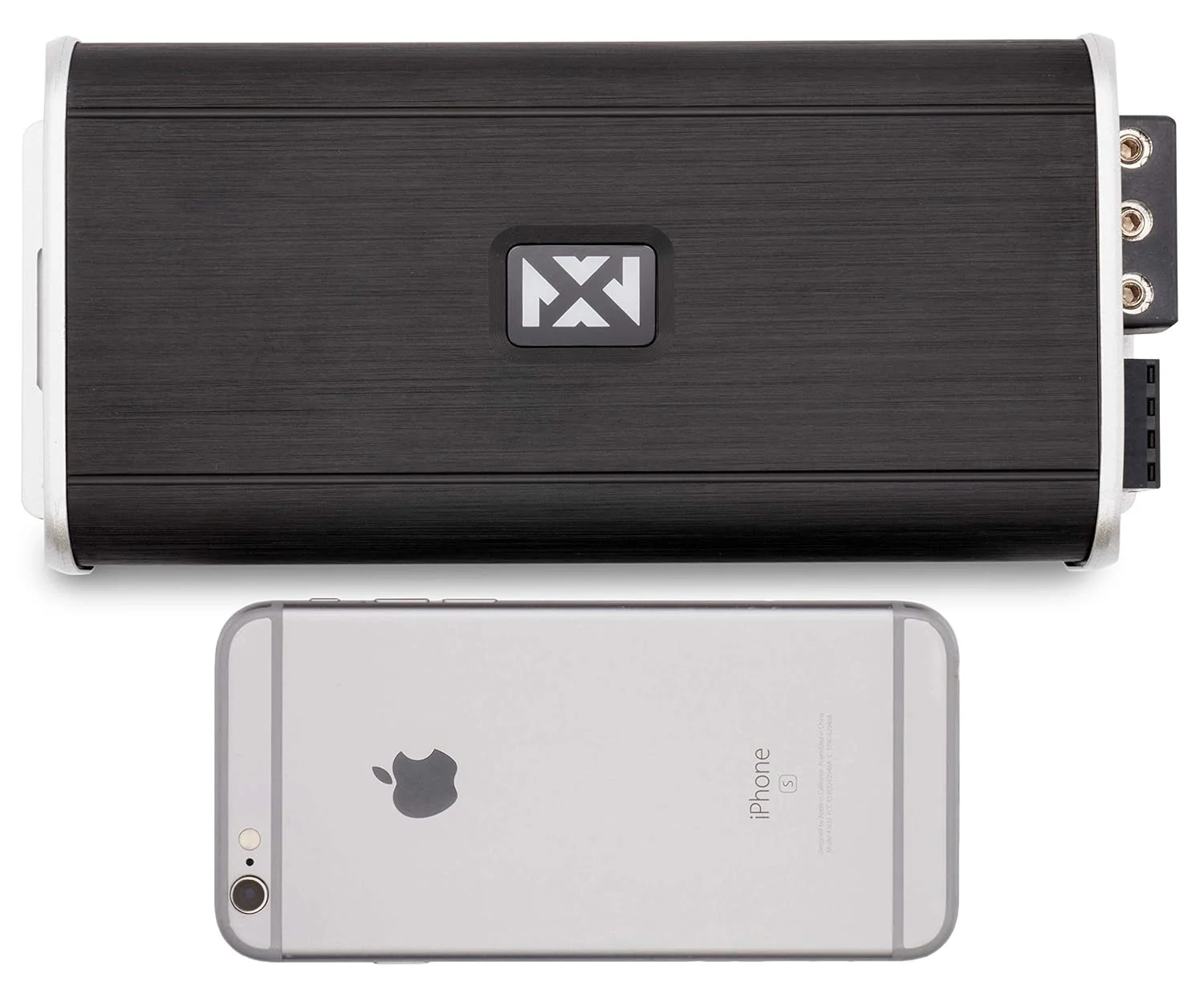

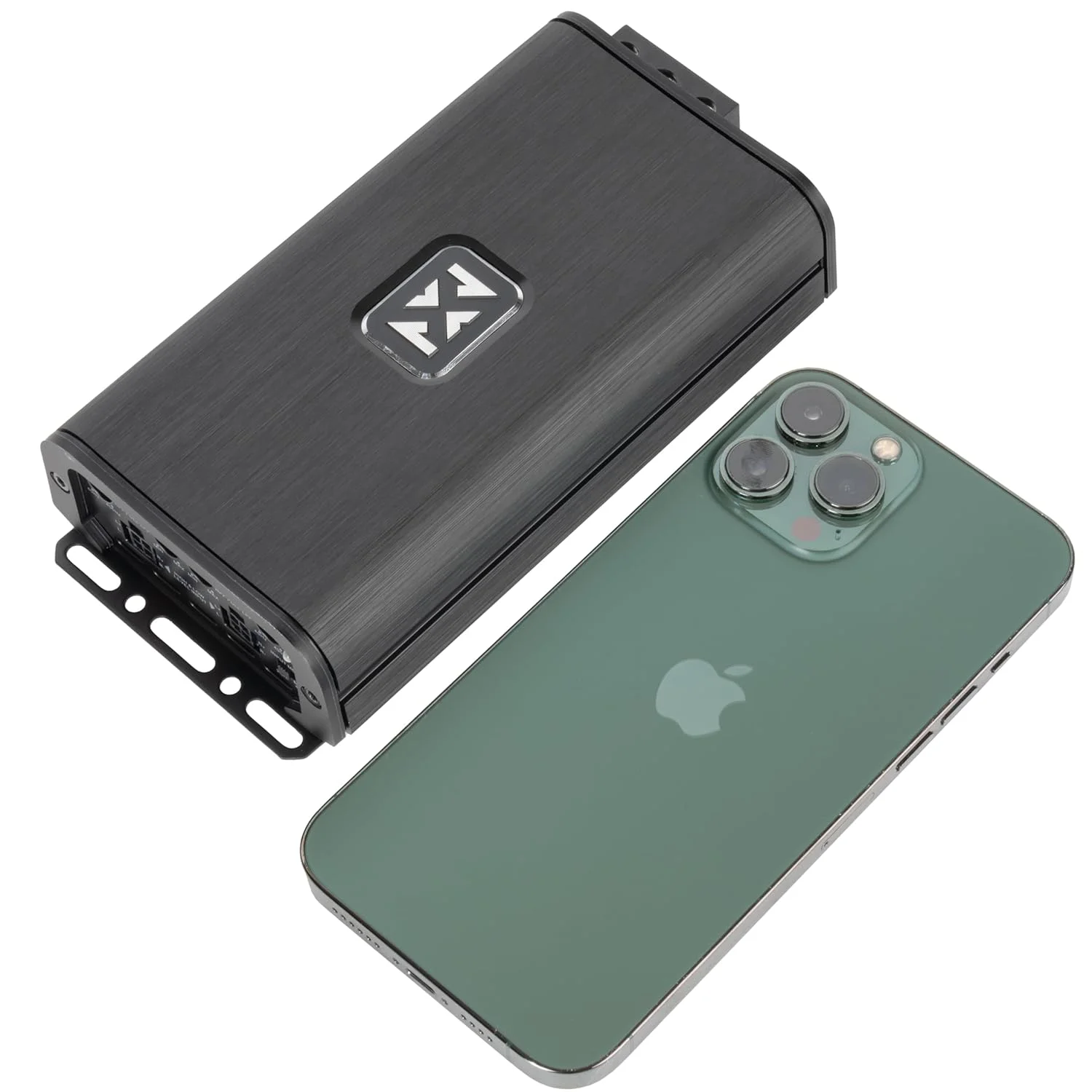

          Experience the new NVX VADM4's impressive power, boasting a peak power rating of 800 Watts and RMS power output ranging from 80 watts x 4 channels at 4 ohms to 125 watts x 4 channels at 2 ohms. Enjoy robust and reliable audio performance for your car, marine vessel, or powersports vehicle. Utilizing cutting-edge Micro Class D technology, this amplifier achieves an extremely compact form factor, measuring just 6.49" L x 3.3" W x 1.48" H. Enjoy powerful sound without sacrificing valuable space in your vehicle or marine setup.
          • Product Highlights
            • 80 watts x 4 channel @ 4 ohm
            • 125 watts x 4 channel @ 2 ohm

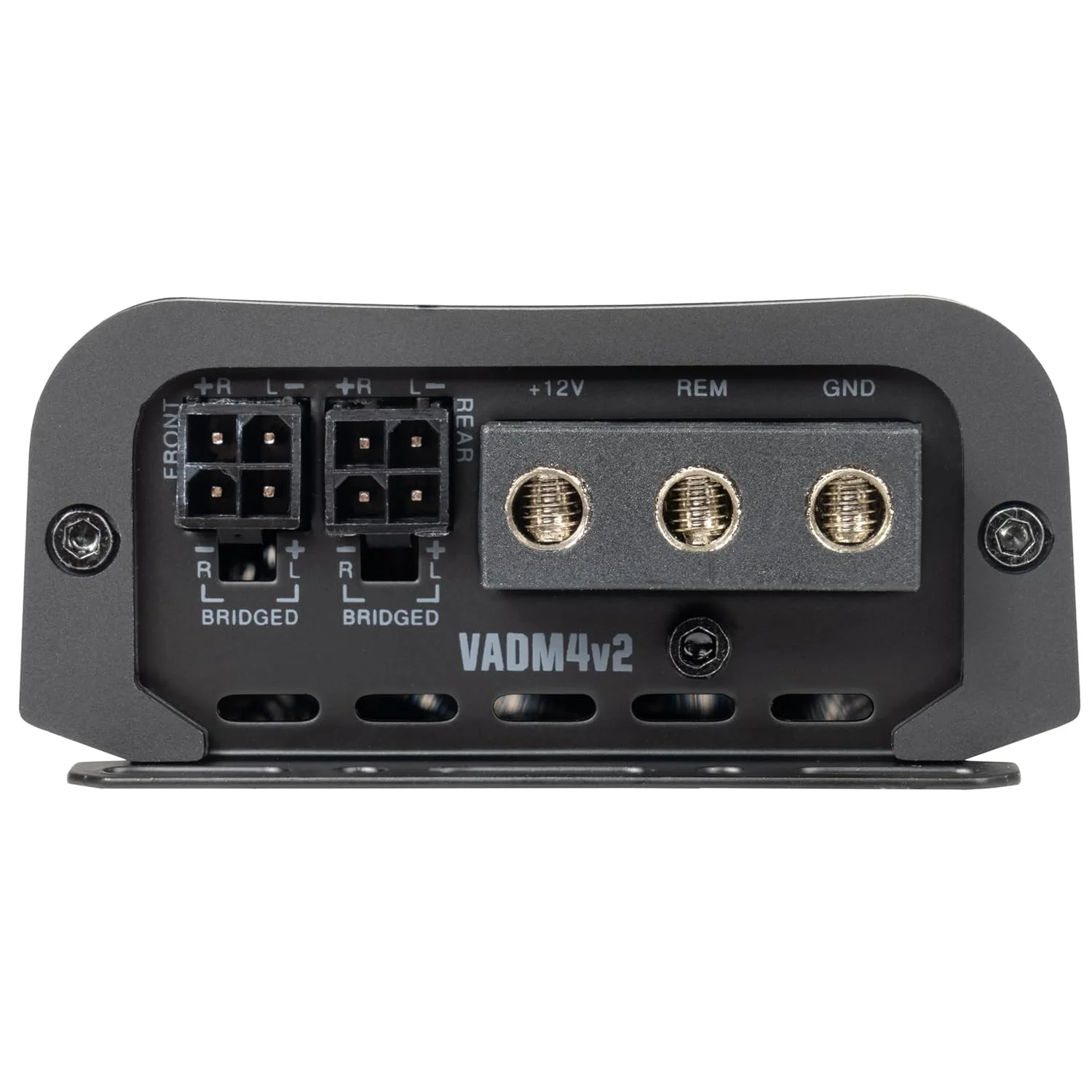

            • Bridged: 250 watts x 2 channel @ 4 ohm
            • Total RMS Power: 500 watts
            • Class D 2 ohm Stable 4-Channel-Channel Amplifier
          • Product Details:
            • V Series Class D 2 ohm Stable 4-Channel Amplifier
            • RMS Power Rating:
            • 4 ohm: 80 watts x 4 channel
            • 2 ohm: 125 watts x 4 channel
            • Bridged: 250 watts x 2 channel @ 4 ohm
            • Total power output: 500 watts
            • LED Power/Protect Light
            • Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

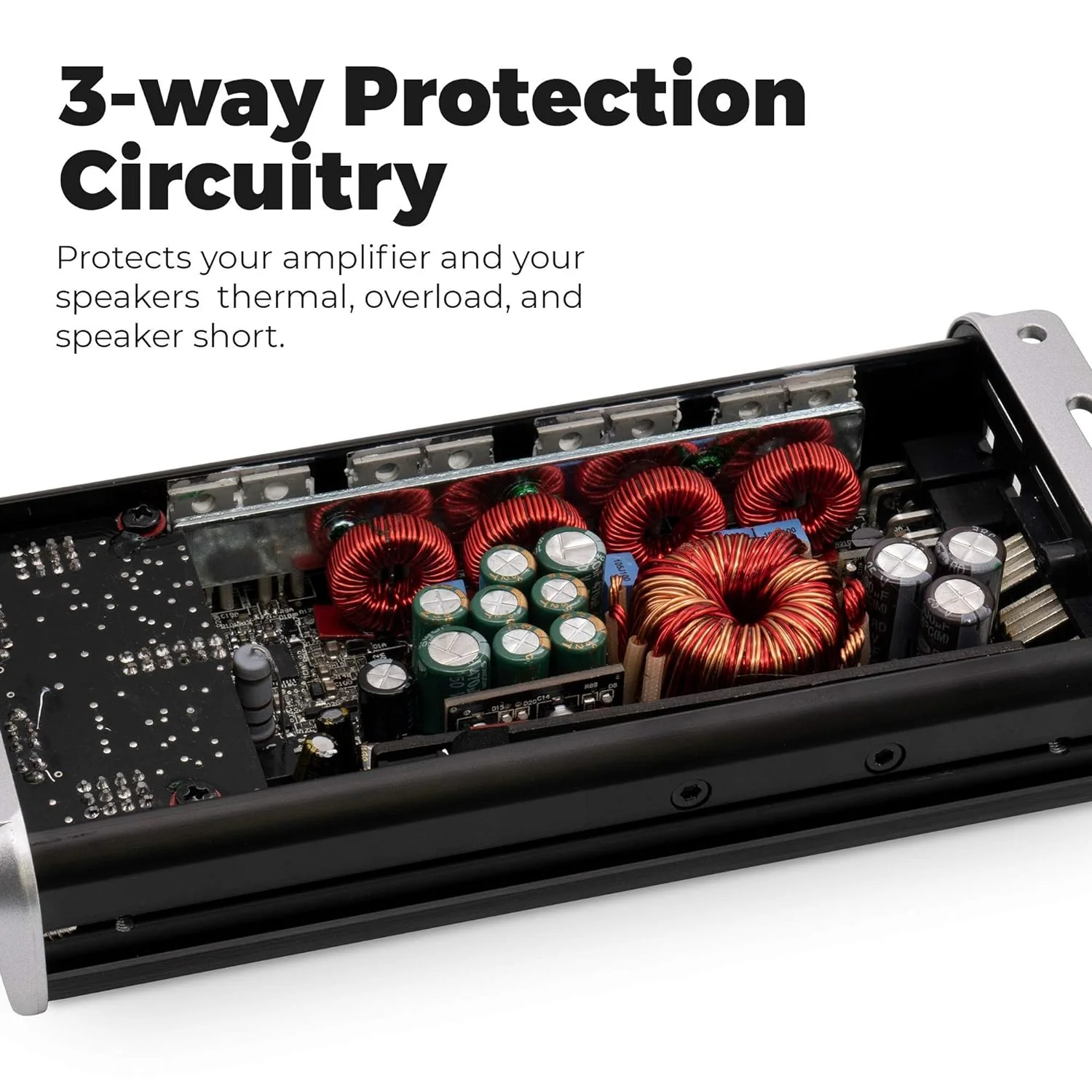

            • 4-way protection circuitry (thermal, overload, speaker short protection and DC offset)
            • Balanced differential inputs eliminate noise picked up by signal cables

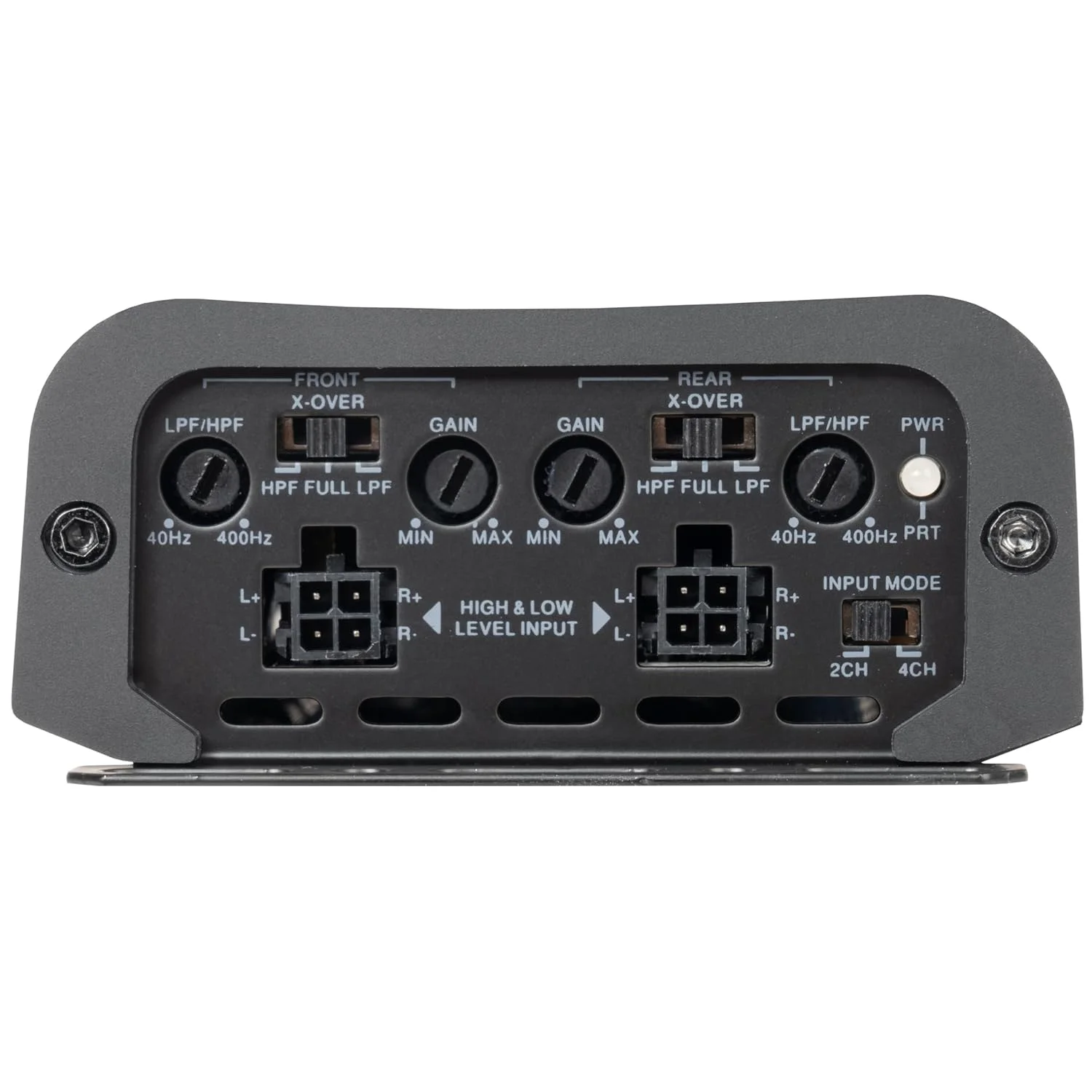

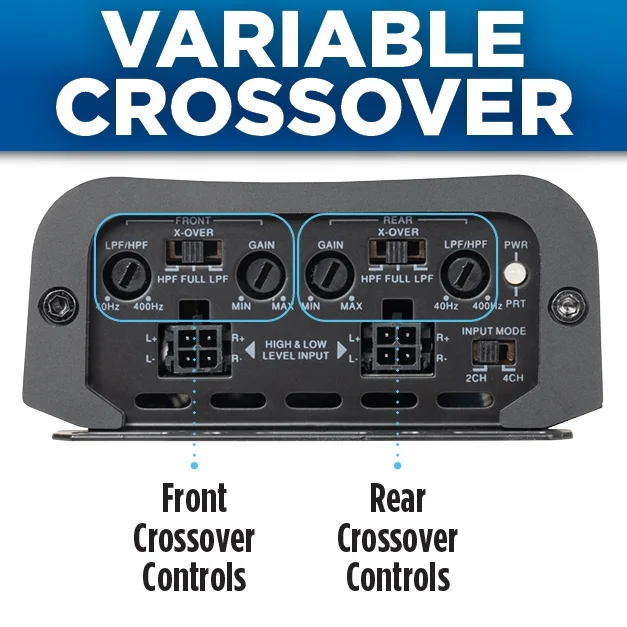

            • Selectable crossover modes: FULL / HPF / LPF
            • Input sensitivity:
            • Low level and High level: 0.2 - 10 volts
            • Frequency Response: 20 - 20000 Hz
            • Total Harmonic Distortion (THD): <0.1%
            • Signal to Noise Ratio: >96 dB
            • Variable high-pass filter: 40 - 400 Hz
            • Variable low-pass filter: 40 - 400 Hz

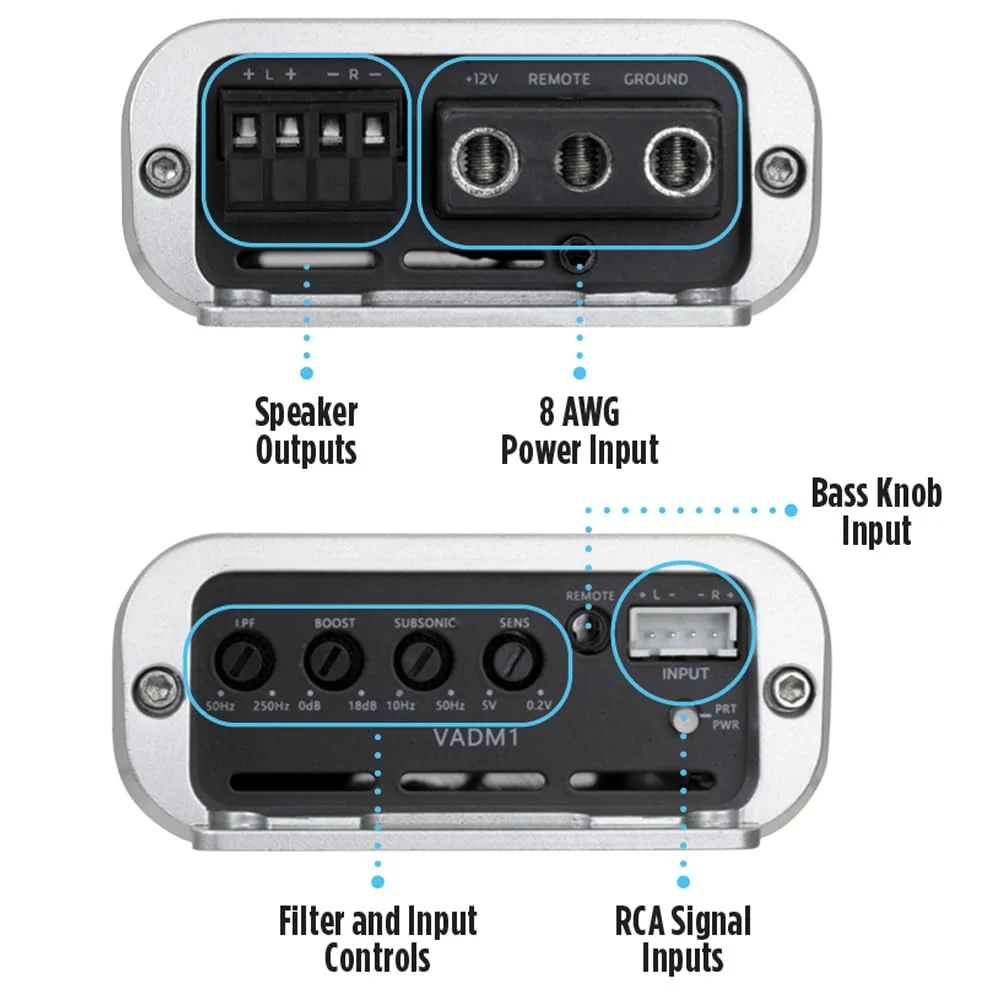

            • 8 AWG gauge amplifier wiring kit is recommended for installation

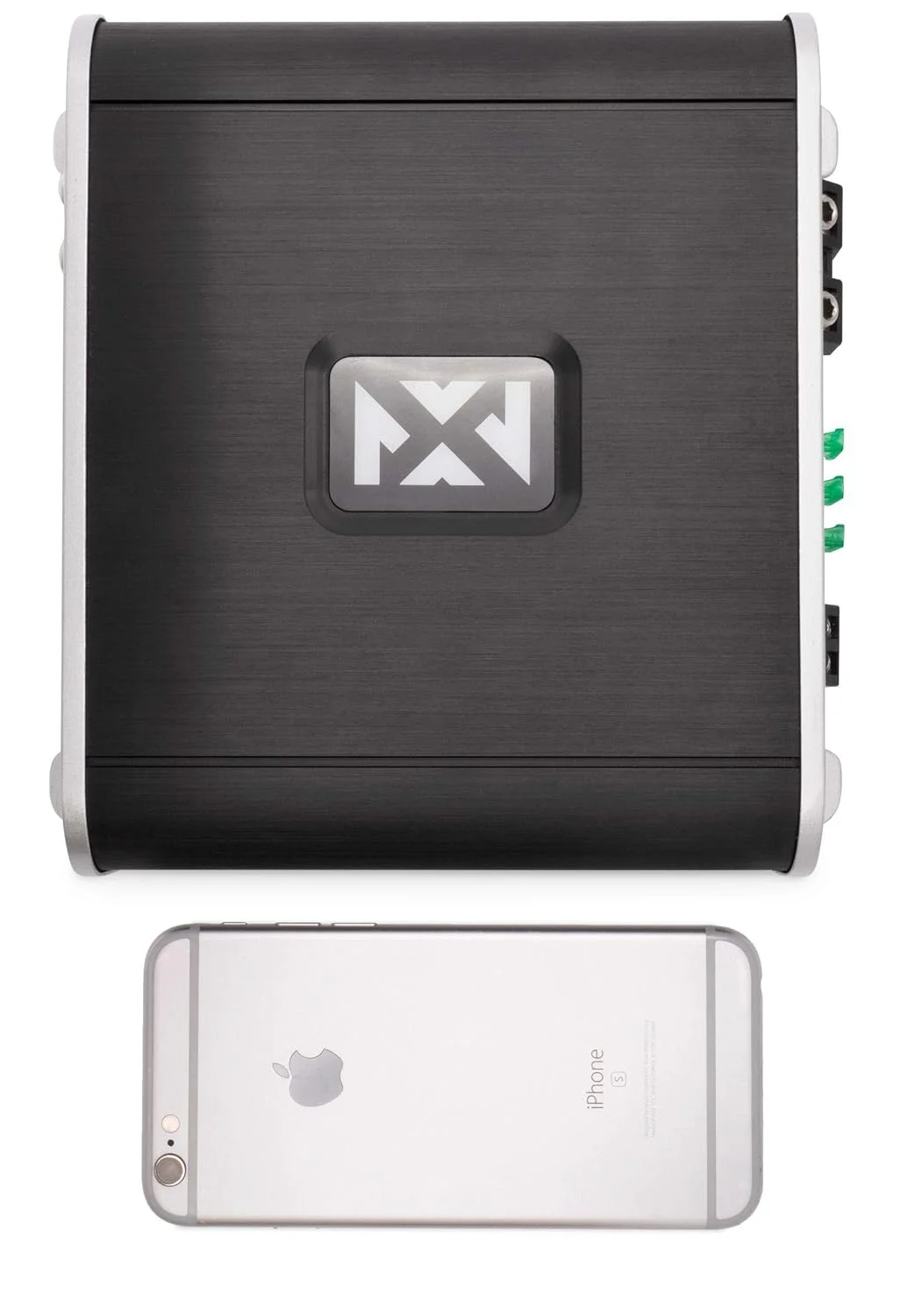

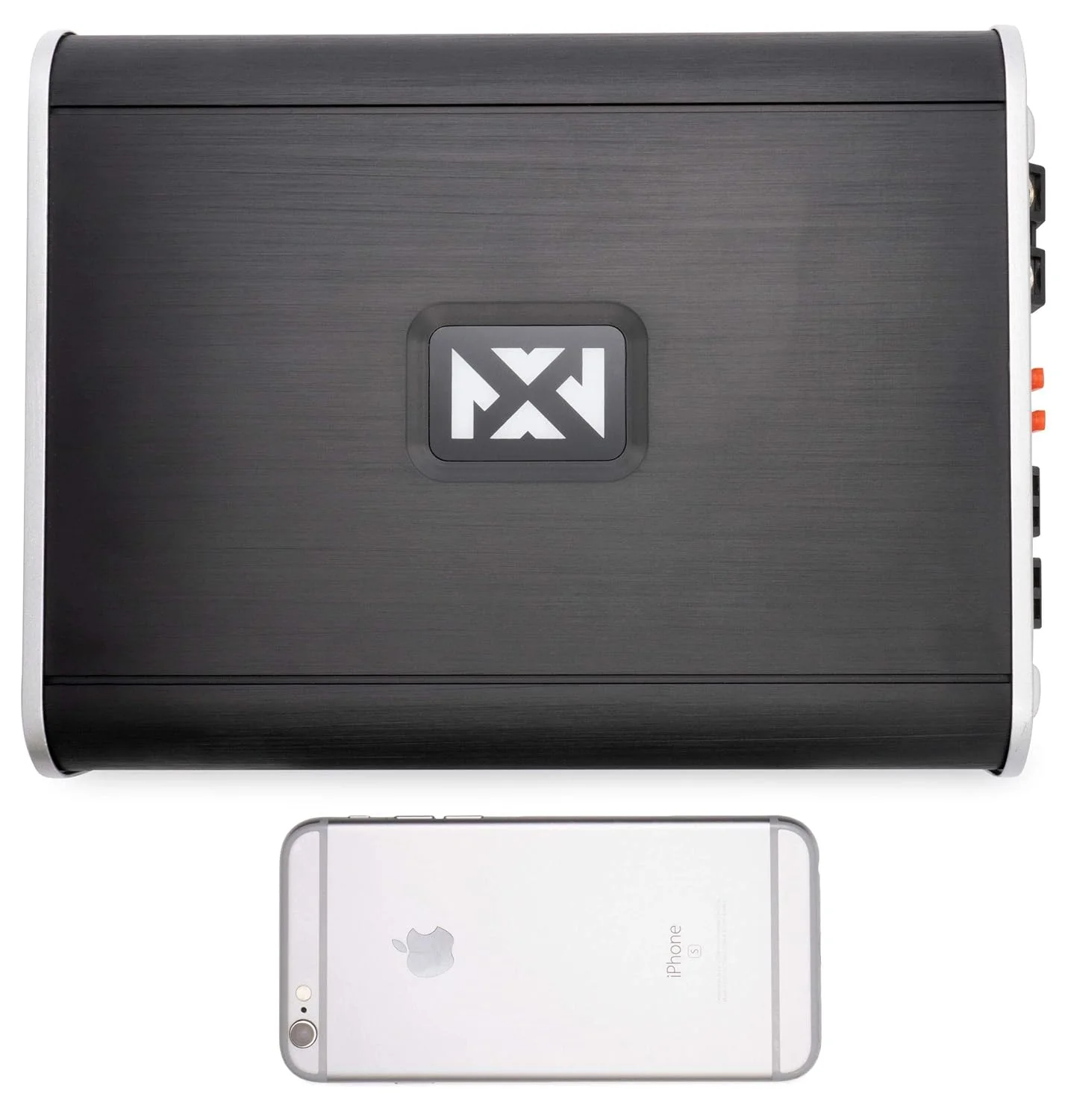

            • Dimensions: 6.49" L x 3.3" W x 1.48" H
            • Authorized Internet Dealer
            • 1-year Manufacturer's Warranty
            • MFR #: VADM4v2
          • Key Features
            • Amplifier Key Features - Compact Design

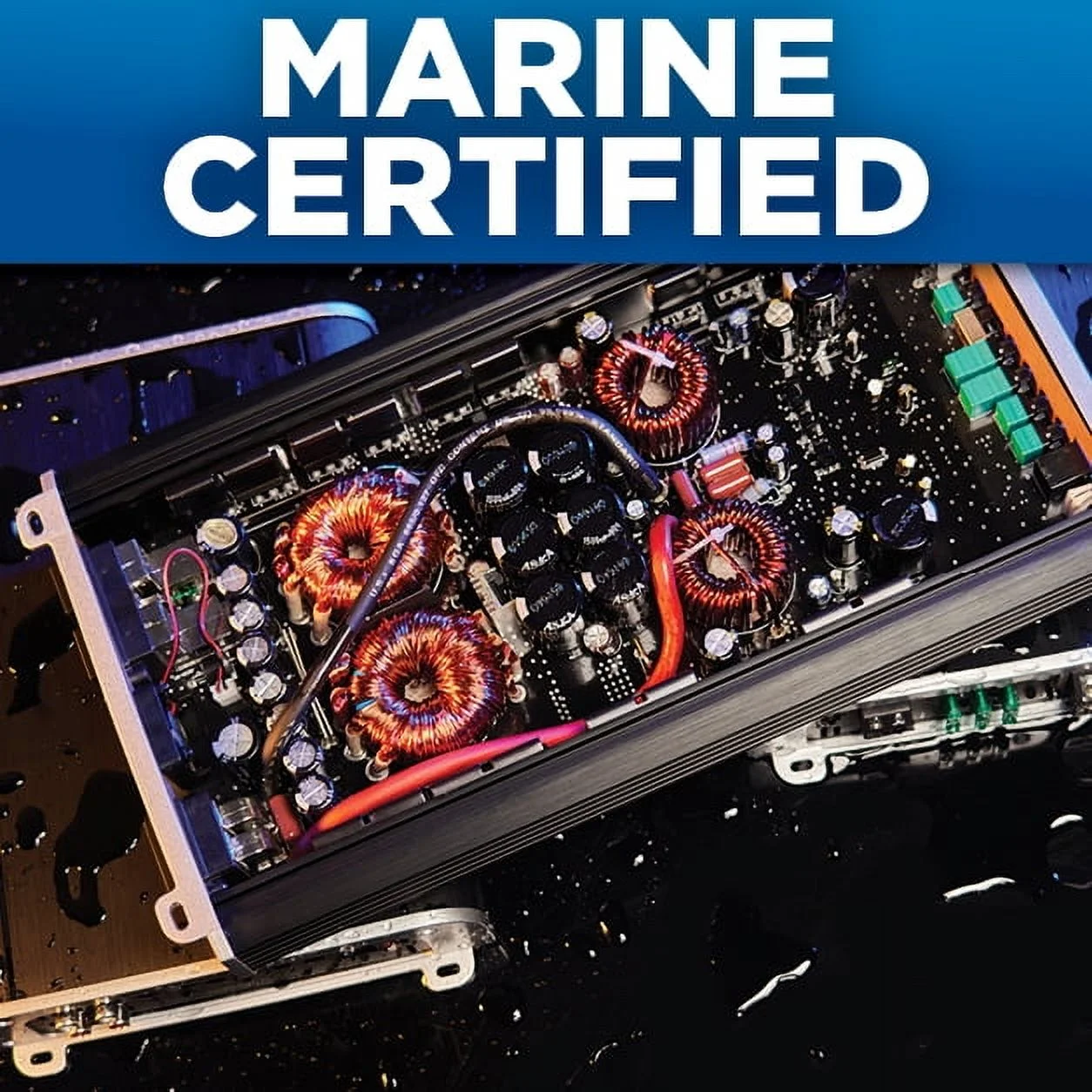

            • Speaker Level Inputs - Weather-Resistant
          • Power Specifications - Full Range Channels
            • RMS Power @ 4 ohms - 80 watts x 4 channel
            • RMS Power @ 2 ohms - 125 watts x 4 channel
            • Bridged RMS Power - 250 watts x 2 channel
          • Power Specifications - Full Range Channels
            • Peak Power @ 4 ohms - 160 watts x 4 channel
            • Peak Power @ 2 ohms - 250 watts x 4 channel
            • Bridged Peak/Max Power - 500 watts x 2 channel
          • Amplifier Specifications
            • Series - V Series
            • Amplifier Class - D
            • Number of Channels - 4-Channel
            • Total Peak Power Output - 1000 watts
            • Total RMS Power Output - 500 watts
            • Maximum Input Gauge Size - 8 AWG
            • Minimum Impedance Unbridged - 2 ohm
            • Minimum Impedance Bridged - 4 ohms
            • Frequency Response - 20 - 20000 Hz
            • THD at Rated RMS Power - <0.1%
            • Speaker Level Inputs - Optional (Requires Accessory Adapter)
            • Preamp Outputs - No
            • Built-in Crossover - Low-Pass (LP), High-Pass (HP), Full (AP)
            • High-Pass Crossover Frequency - 40 - 400 Hz
            • Low-Pass Crossover Frequency - 40 - 400 Hz
            • Signal-to-Noise Ratio - >96 dB

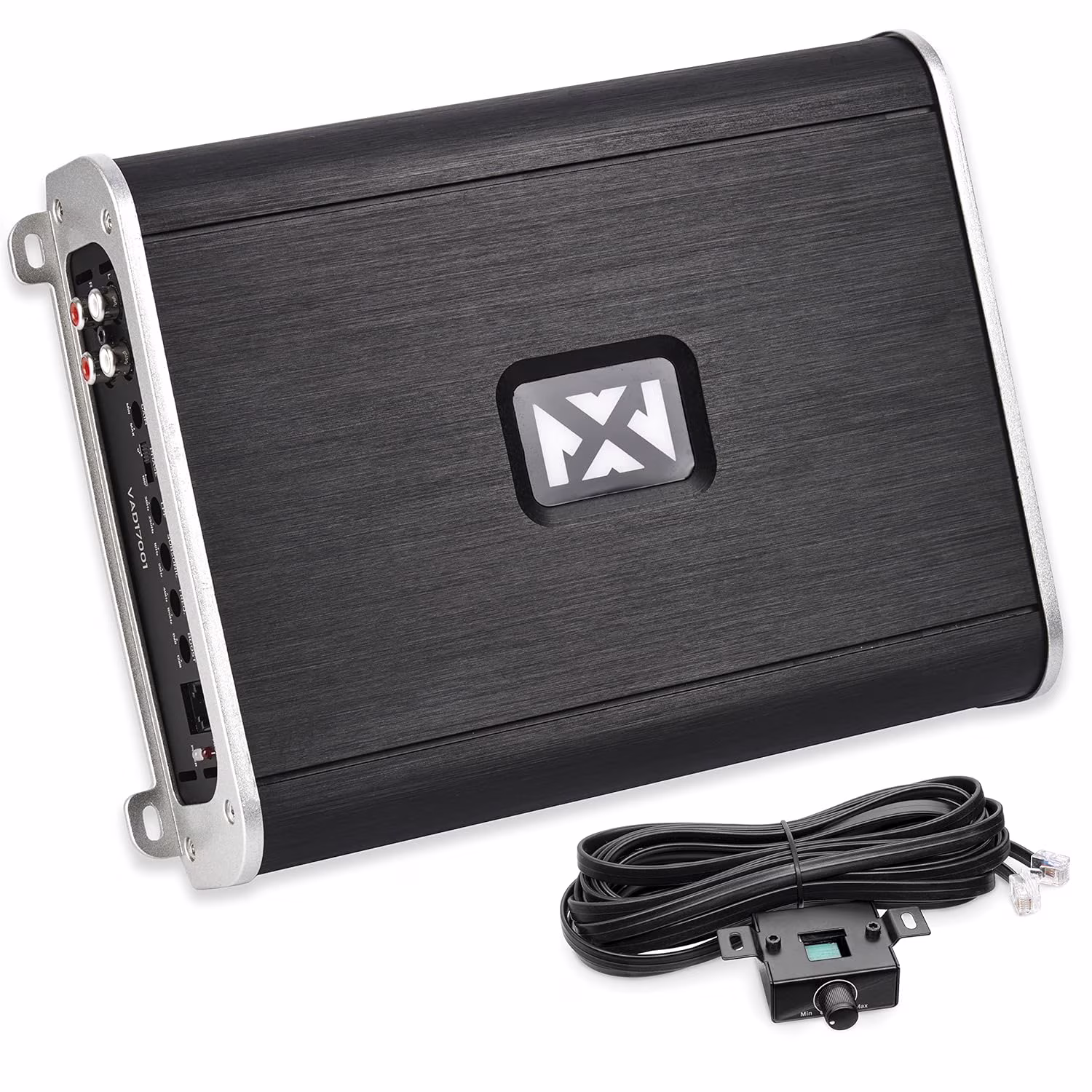

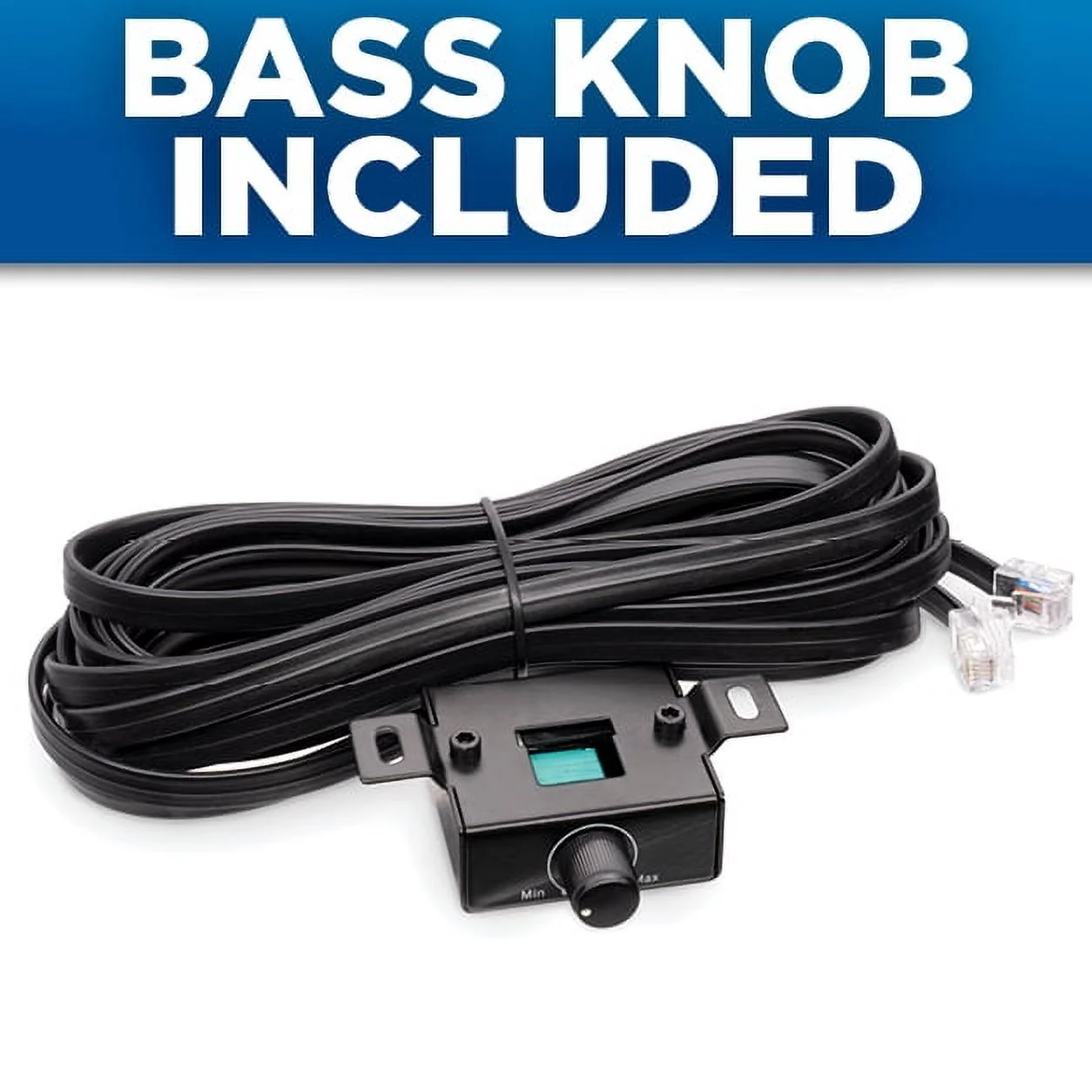

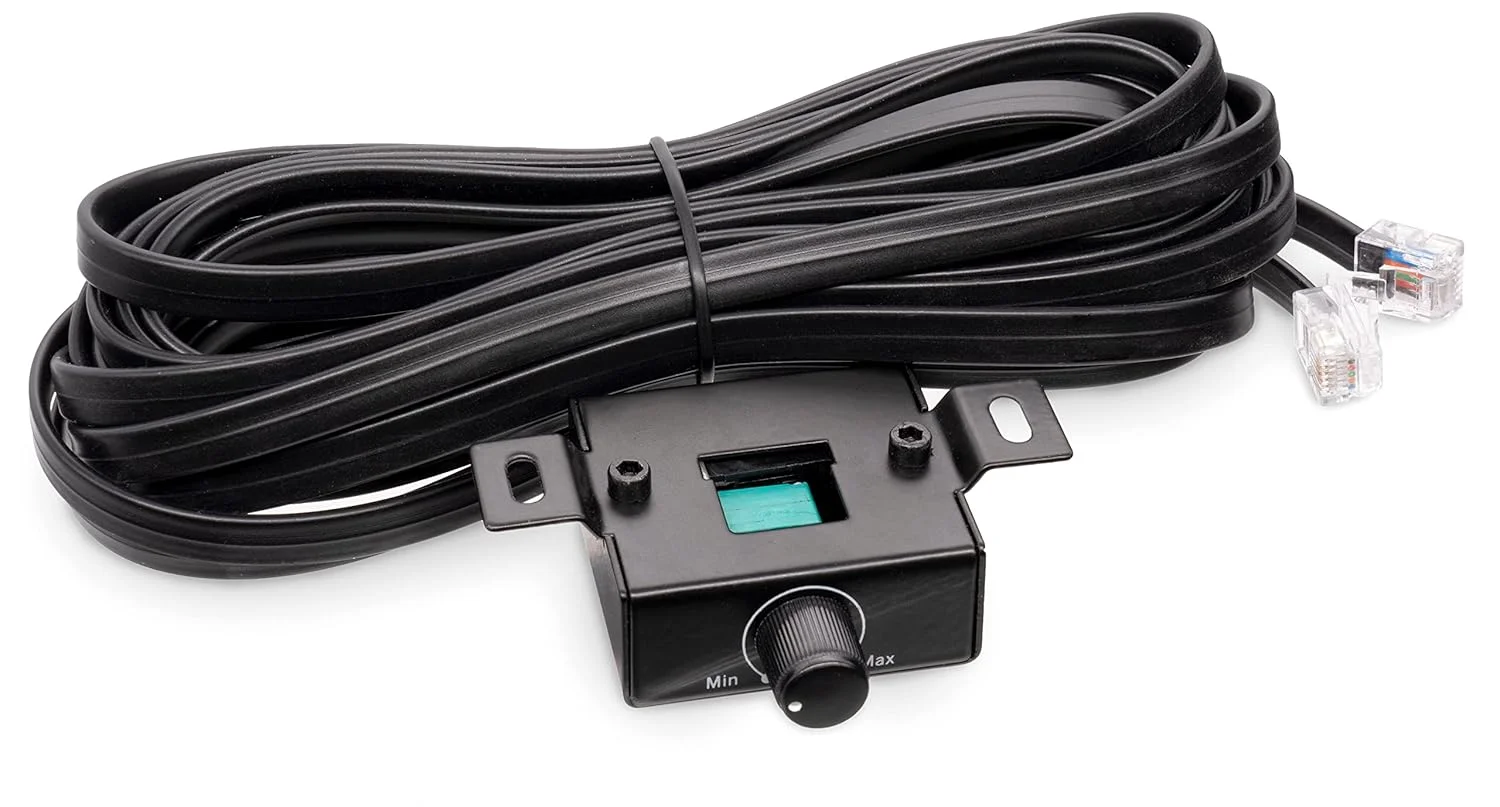

            • Remote bass/level controller - Optional (Accessory required and sold separately), NVX XBRC: NVX XBRC Universal Bass Knob
            • Strappable - No
            • Sonic Certified Amplifier - Yes
            • Amp Bluetooth Connectivity - No
            • Hi-Res Certified - No
            • Low-Level Input Sensitivity - 0.2 - 10 volts
            • High-Level Input Sensitivity - 0.2 - 10 volts
          • What is in the box?
            • Paperwork - User manual

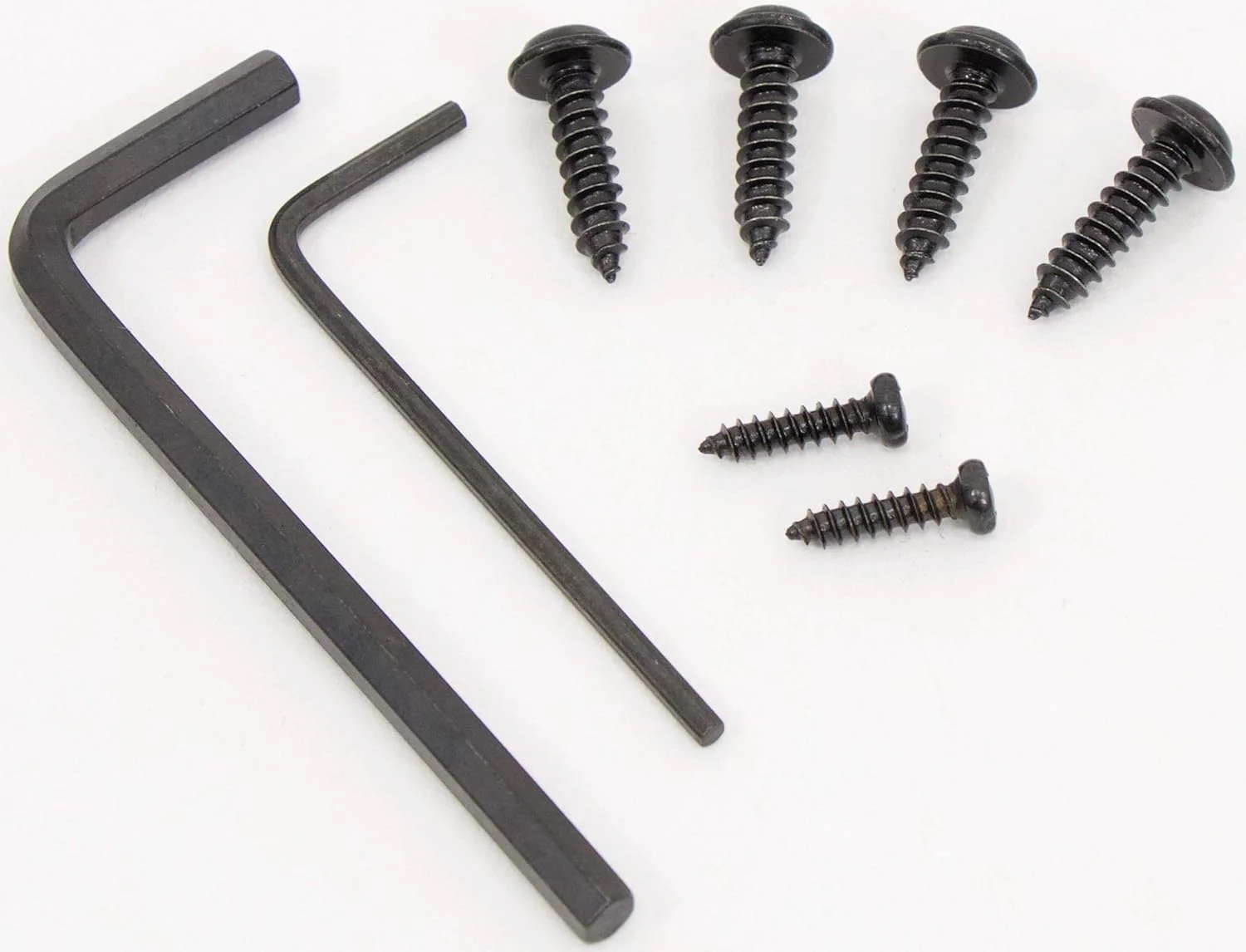

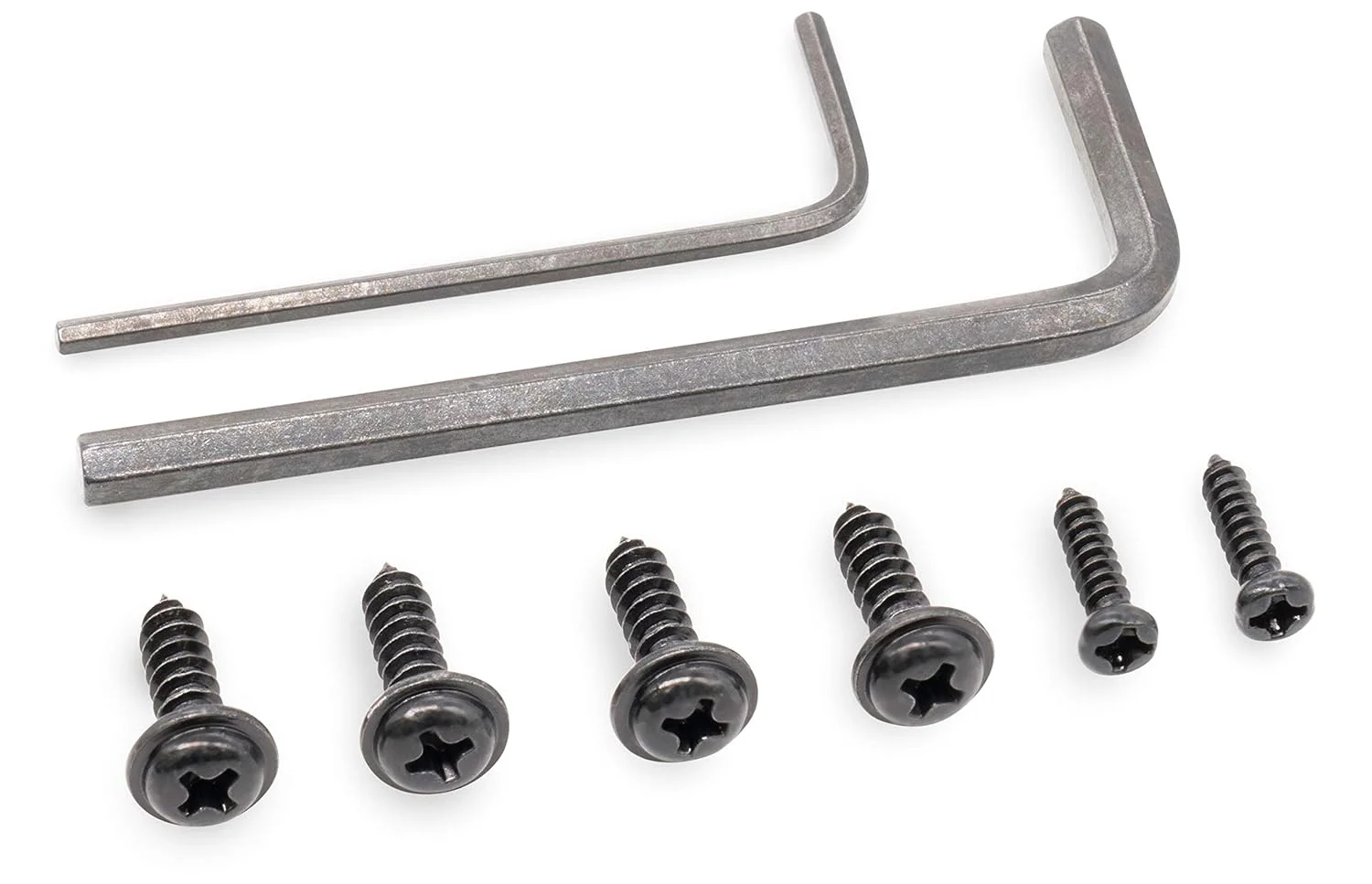

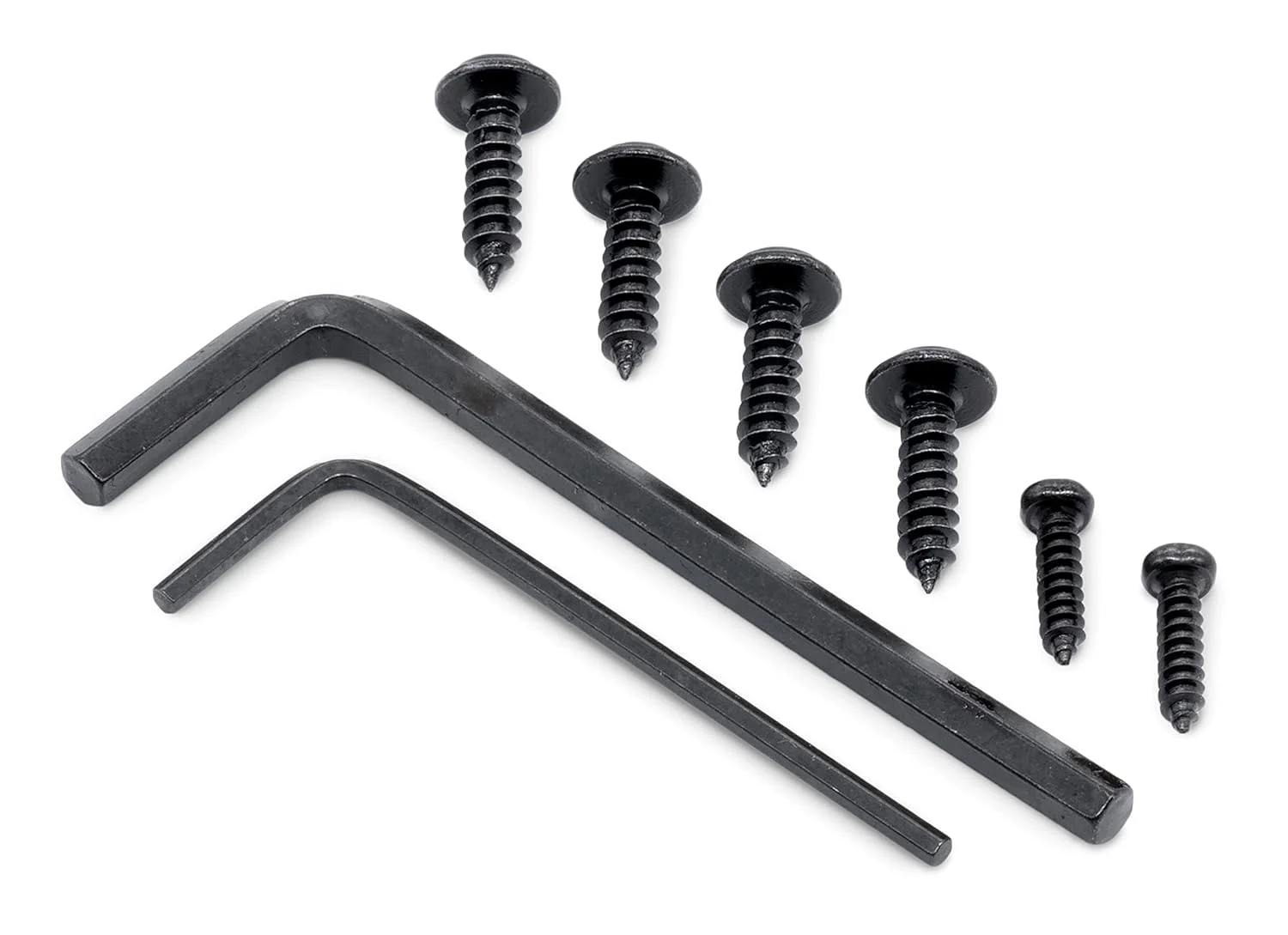

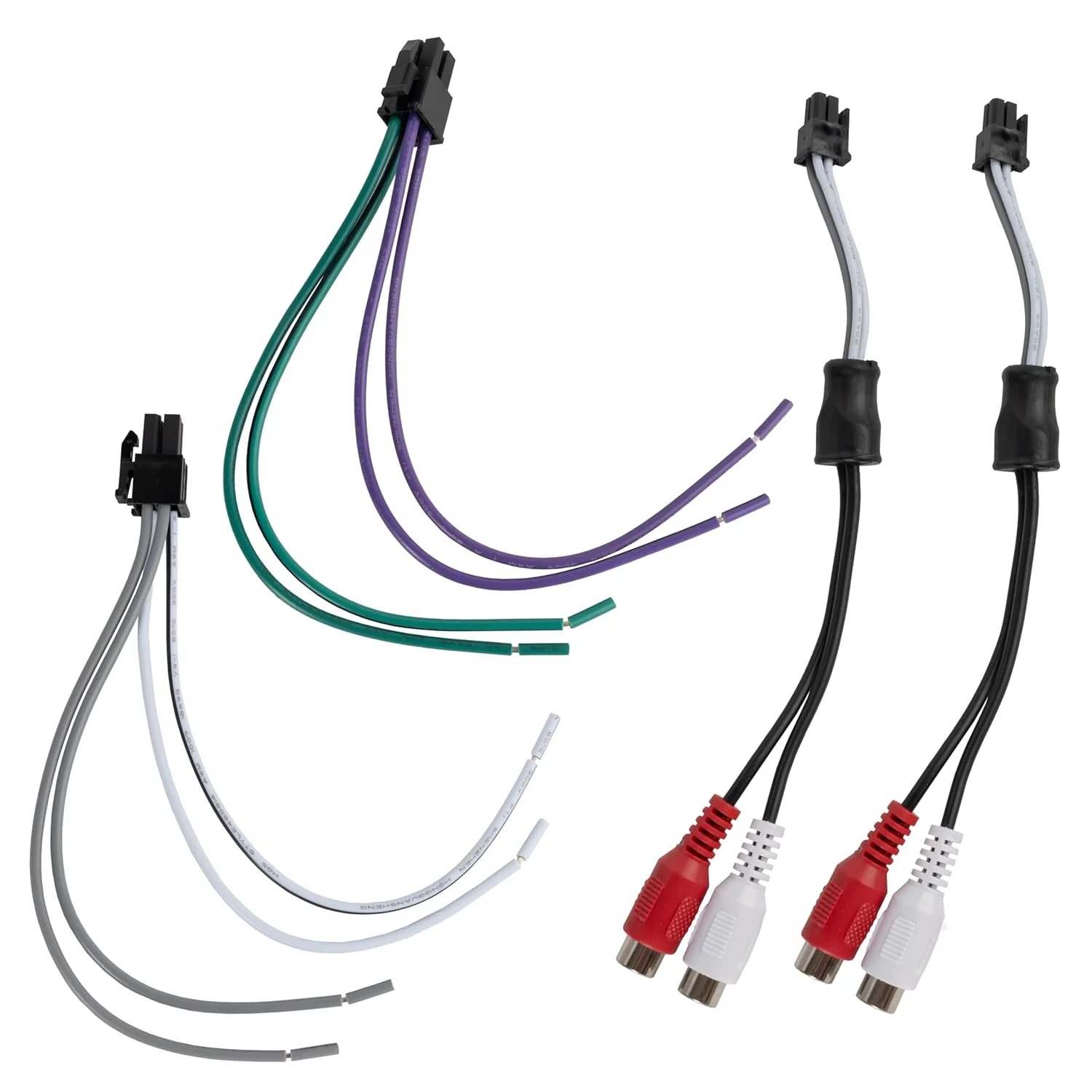

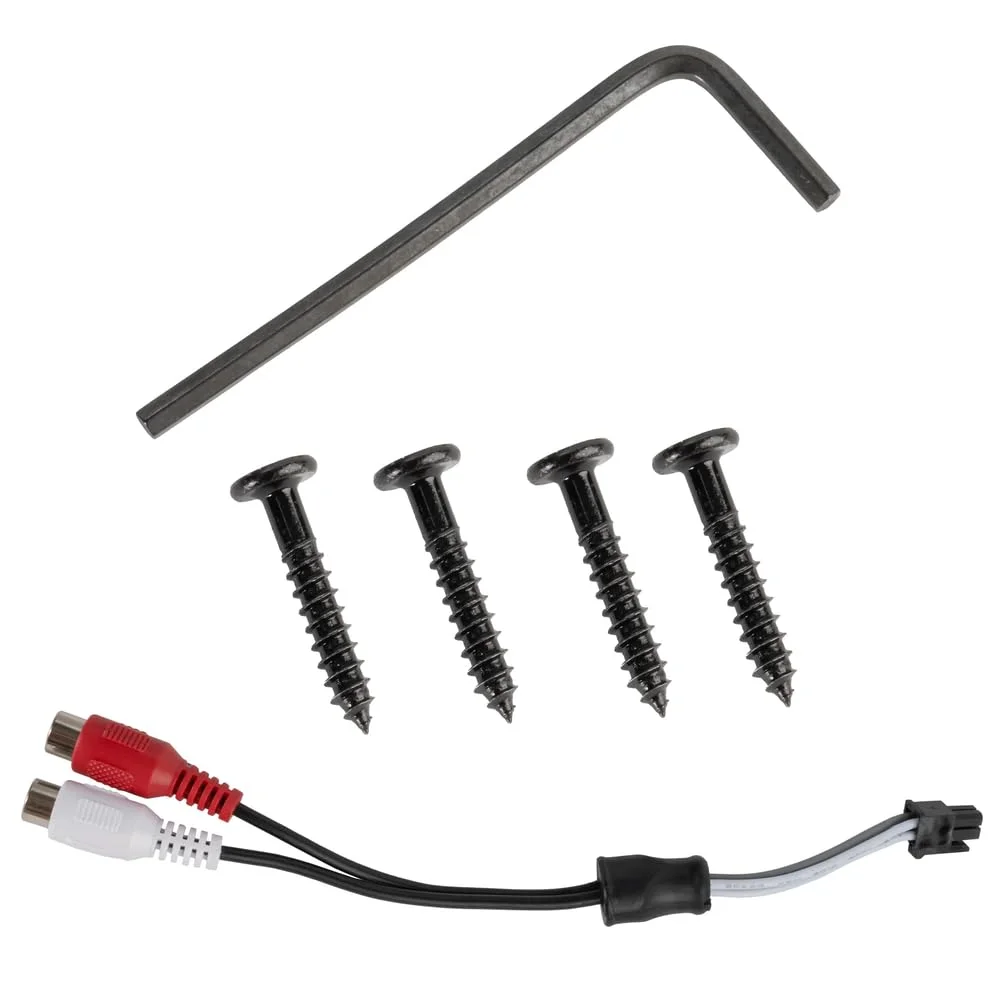

            • WITB: Amplifiers - Amplifier, Mounting screws (4), High-level input wiring harness w/ molex connector, Allen wrenches (2)
          • Warranty and Return Policy
            • Parts Warranty Duration - 1 year
            • Labor Warranty Duration - 1 year
            • Warranty Provider - Manufacturer
